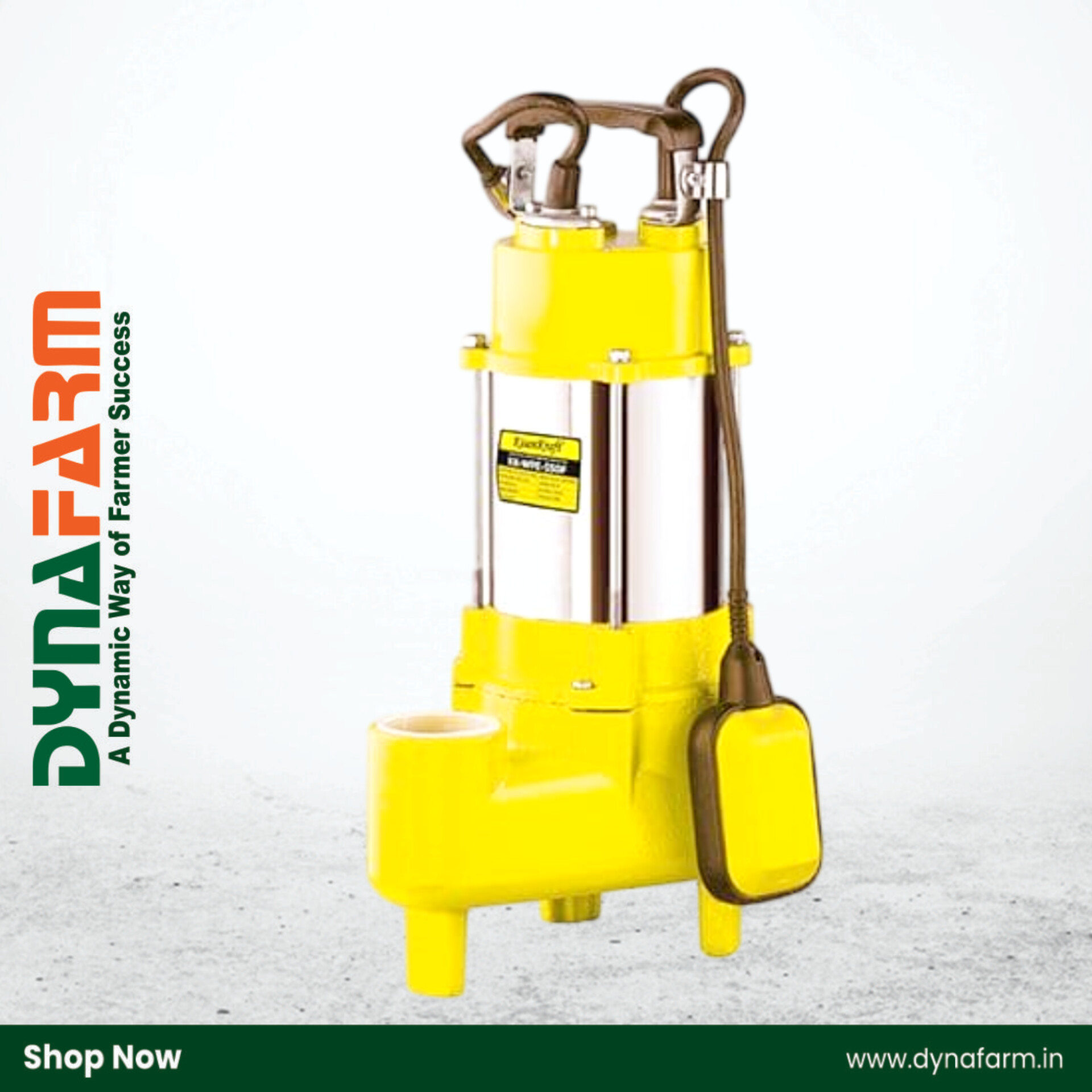

KISANKRAFT CENTRIFUGAL ELECTRIC WATER PUMP KK-WPE-550F

Brand: Kisan Kraft | Model: KK-WPE-550F | Product Type: Electric Centrifugal Water Pump | Rated Power: 0.55 kW (0.75 HP) | Maximum Flow Rate: 400 L/min

Product Description

The Kisan Kraft KK-WPE-550F Centrifugal Electric Water Pump is designed for water transfer and agricultural water-management applications. Its electric motor and centrifugal pumping mechanism make it suitable for compatible water-handling tasks in farms, gardens, and other locations requiring efficient water movement.

The pump has a rated power of 0.55 kW (0.75 HP) and operates at 2,850 RPM. It offers a listed maximum flow rate of 400 litres per minute and a maximum pumping head of 9.5 metres. The pump features a cast-iron body and impeller, copper motor winding, and a 6-metre power cable with plug. <Cite refs={[“turn645061search12″,”turn645061search0”]}/>

The Kisan Kraft KK-WPE-550F is designed for submerged water-pumping applications, with a listed maximum immersion depth of 5 metres and IP68 protection. It can support suitable agricultural water-transfer and drainage tasks when installed and operated according to the manufacturer’s instructions. Check the required pumping head, water conditions, and electrical supply before use.

Key Features

• Brand: Kisan Kraft
• Model: KK-WPE-550F
• Product Type: Electric Centrifugal Water Pump
• Rated Power: 0.55 kW (0.75 HP)
• Operating Speed: 2,850 RPM
• Maximum Flow Rate: 400 L/min
• Maximum Head: 9.5 metres
• Minimum Head: 3.5 metres
• Electrical Supply: 220–240V, 50Hz
• Motor Winding: Copper
• Pump Body and Impeller: Cast iron
• Protection Rating: IP68
• Maximum Immersion Depth: 5 metres
• Power Cable: 6 metres with plug
• Pump Delivery Size: 2 inches

Product Benefits

• Efficient Water Transfer: Designed to move water for suitable agricultural and general pumping tasks.
• Compact Motor Power: The 0.55 kW motor is suitable for applications within the pump’s rated operating range.
• High Listed Flow Rate: The maximum rated flow of 400 L/min supports suitable water-transfer requirements under appropriate conditions.
• Durable Construction: Cast-iron pump components provide a robust construction for intended water-pumping applications.
• Copper Motor Winding: Supports reliable motor operation when the pump is used within its specified limits.
• Submersible Operation: The IP68 protection rating and listed immersion depth support suitable submerged installations.
• Convenient Power Connection: The supplied 6-metre cable and plug simplify connection where the electrical installation is compatible.
• Agricultural Versatility: Suitable for compatible water-transfer and drainage applications.

Technical Specifications

Applications

• Agricultural water transfer
• Farm water-management operations
• Suitable irrigation-related water handling
• Water transfer from compatible tanks and reservoirs
• Drainage from suitable flooded areas
• Garden and landscape water management
• Submerged water-pumping applications
• General water-transfer tasks within the rated operating limits

Usage and Maintenance

1. Check Electrical Compatibility: Ensure the power supply matches the pump’s voltage, frequency, and current requirements.
2. Inspect the Cable: Check the power cable and plug for damage before every use.
3. Install Correctly: Position and secure the pump according to the manufacturer’s instructions. Do not suspend it by the power cable or discharge pipe.
4. Check Water Conditions: Operate the pump only within the specified liquid-temperature and immersion limits.
5. Prevent Dry Running: Ensure the pump remains properly submerged during operation as required by the manufacturer.
6. Use Electrical Protection: Use suitable earthing and a residual-current protection device installed according to local electrical safety requirements.
7. Monitor Operation: Stop the pump if unusual noise, damage, or abnormal operation occurs.
8. Disconnect Before Cleaning: Switch off and unplug the pump before inspection or maintenance.
9. Clean Regularly: Remove accumulated dirt and debris according to the manufacturer’s instructions.
10. Arrange Authorized Servicing: Do not open or repair the motor yourself; contact an authorized service provider when required.

Product Category

Agriculture & Farming > Irrigation Equipment > Electric Water Pumps
